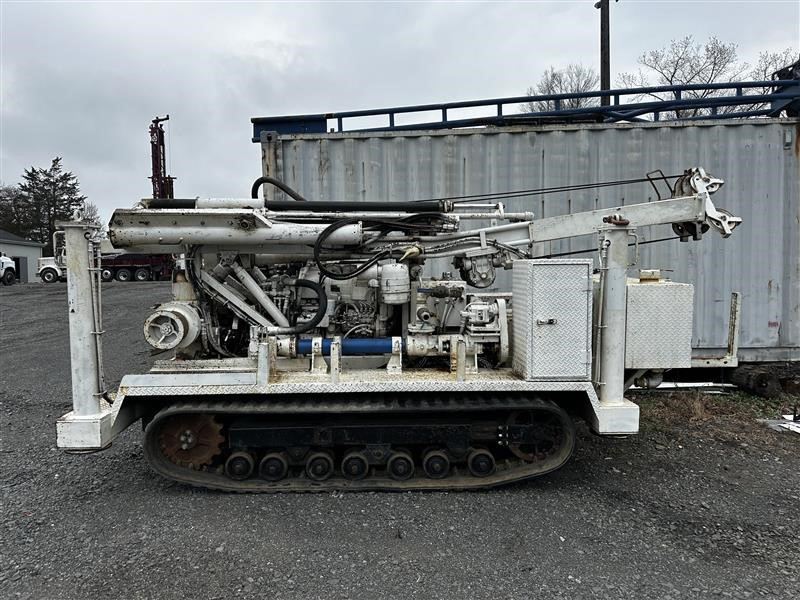

The CME 45C Remote is a compact, track-mounted drill rig designed for dependable performance in geotechnical and environmental drilling applications. Built on a tracked carrier and equipped with a wireless and tether remote system, this unit offers maneuverability for jobsites where access, positioning, and setup flexibility are important. This CME 45C has been serviced and improved by Rig Source, including major rotary box, right-angle drive, clutch, winch, wiring, engine, and hydraulic service work for contractors looking for a versatile, well-maintained drilling solution.
Key Features
• Track-mounted CME 45C drill rig
• OEM wireless and tether remote system
• Compact setup for geotechnical and environmental drilling applications
• Designed for maneuverability, positioning, and jobsite flexibility
• Recent Rig Source service and repair work completed
Unit Specifications
• Yearl: 1999
• Engine: 3-cylinder Deutz diesel engine
• Transmission: 4-speed forward / 1-speed reverse
• Drill Frame: Hydraulically actuated folding upright drill frame
• Feed Controls: 1 spring return
• Vertical Drive: Two double-acting hydraulic cylinders
• Hydraulic Oil Tank: 25 gal
• Diesel Fuel Tank: 25 gal
• Rotary Box: Double chain, standard 22:19 gear ratio
• Angle Drill: Permanently coupled
• Auger Drive: 1-5/8″ hex shank
• SPT Hammer: Automatic SPT Hammer 140
• Cathead: Hydraulic
• Mast: 20 ft
• Water Pump: Moyno 3L6
• Water Tank: 100-gallon on-deck water tank
• Two winches
• Front auger racks
• On-deck factory toolboxes
• Rod storage
Rig Source Service & Improvements (2025-2026)
• Rebuilt rotary box with all new internals
• Rebuilt right-angle drive
• Installed new clutch
• Repaired and resealed both winches
• Replaced yoke and shaft assembly
• Rebuilt auto hammer
• Replaced helper’s side track with new CME track
• Installed new cables and hooks
• Completed full engine and hydraulic service, including drive hubs
• Installed new feed frame split bushings
• Inspected and repaired wiring to factory specifications

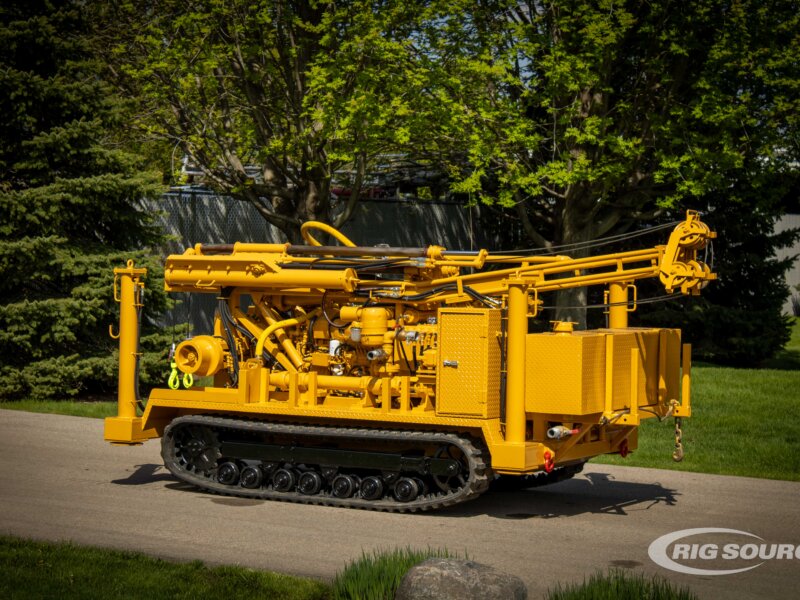

• Sandblasted and painted with new decals; original placards to be used
Specifications are provided for general reference and may vary by unit configuration.
Interested in this CME 45C Remote? Contact Rig Source at (630) 365-1649 to confirm current availability, rental options, purchase options, pricing, and configuration details.
