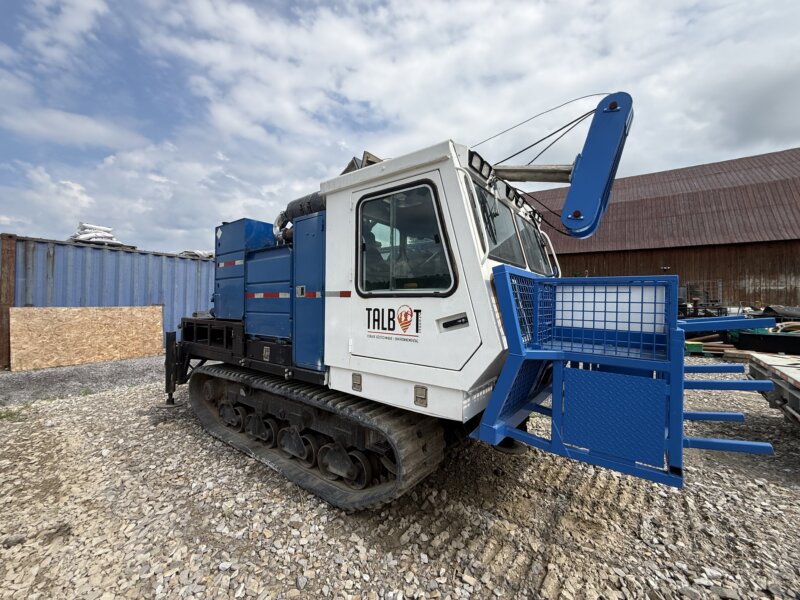

This 2013 Multi-Power drill rig (built in British Columbia) has 5,000 hours and has been fully refurbished from top to bottom. The rig is fully hydraulic with no electronics, delivering excellent reliability and power from its 260 HP Cummins engine and three hydraulic pumps producing a combined 173 GPM. Fresh out of the shop, new valves, hoses, bearings, and chain, it’s 100% leak-free and ready to drill.
Key Specifications
Make / Model / Year: Multi-Power, 2013
Hours: 5,000
Engine: Cummins diesel, 260 HP
Hydraulic System: 3 pumps – 173 GPM total
Winches:
1 × Wireline winch (800 m cable)
1 × Main winch – 25,000 lb
1 × Auxiliary winch – 5,000 lb
Water Pump: American Bean 420 (new, never used)
Water Tanks: 2 × 200 gal (400 gal total)
Rotary Head: Marcotte diamond drill head
Funk 4-speed transmission
Rexroth 106 cc motor
Variable torque, new bearings and chain
Handles NQ / HQ / NW
Side Shift: Head 28 in / Foot clamp 18 in
Foot Clamp: Hydraulic automatic jaws
SPT Hammer: Automatic system included
Cab: Two seats, Webasto heater, radio/CD, Air Positive Shutoff
Rear Camera: Installed
Travel Speed: Up to 10 km/h
Estimated Weight: 27,000 lb
Frame / Stabilizers: All new hydraulic legs
Completely rebuilt and in excellent mechanical condition. All systems; hydraulic, mechanical, and structural have been serviced and inspected. Ready to work with zero leaks and all-new fittings, hoses, and protective sleeving.
Asking Price: $250,000
For more information on this 2013 Multi-Power C22 Drill Rig please contact Rig Source at (630) 365-1649.
