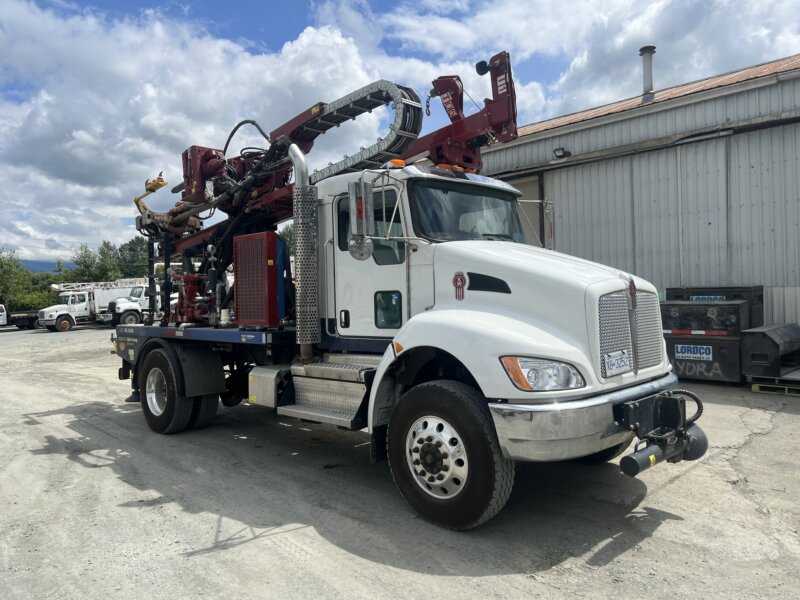

Eijkelkamp Sonic SRS ML Duo mounted on a 2021 Kenworth T270 4×4. 34k sonic head mounted on a Fraste tower.
Set up to run Boart Longyear tooling.
only 310 hours on the sonic head.
Switch from sonic to rotary drilling in minutes.
This high-performance Sonic SRS ML DUO rig, built by Eijkelkamp North America, is a versatile and powerful geotechnical and environmental drilling system. Mounted on a rugged 2022 Kenworth T270 4×4 PTO-driven truck, this unit is field-ready and ideal for companies looking to expand into sonic, CPT, or dual-rotary markets with minimal lead time.
Key Features:
Sonic Drill System:
Drill Head: RotoSonic Small HO + tilt frame
Max frequency: 0–150 Hz
Dynamic output force: 150 kN / 34,000 lbf
Tilt: 65°
Dual isolators, high-pressure system (210 bar / 3,045 psi)
Pull/push force: 5,620 lbf (sonic), up to 13,500 lbf (static)
Rotary Head: R02D060 – 4-speed
Max torque: 1,850 ft-lb
Speeds range from 135 to 950 RPM
Integrated air/mud injection swivel
Drill Mast:
11’6″ stroke
Pull-up: 14,000 lbs
Pull-down: 7,000 lbs
Adjustable control panel on swing arm
Support Equipment:
Hydraulic Break-Out Clamps: Dual clamp system (2″–10″) with 17,000 ft-lbs torque
Wireline Winch: 2,250 lb pull, 328 ft/min speed, includes 656 ft cable
Slewable Jib Boom with Winch
Bean/FMC Mud Pump L06-18: 160 L/min @ 695 psi
Cat 5120 High-Pressure Water Pump: 5 GPM @ 3,046 psi
140 lb Automatic SPT Hammer
CPT-Ready: Hydraulic + electrical quick connect system
Drill Rod Storage Slide
LED Light Package
Truck Specifications – 2022 Kenworth T270
Drive: 4×4
PTO-Driven for Drilling Operations
Mileage: 88,000 km
This machine is a 9/10. Low hours and great shape. Just completed its annual Commercial Vehicle inspection.
It should be noted that this unit was imported into Canada and was assembled in the USA, so tariffs should not apply.
Asking Price: $557,500 USD
For more information on this Eijkelkamp Sonic rig, please contact the Rig Source Team at (630) 365-1649.
This unit is available by a Third Party, view full disclaimer here.
