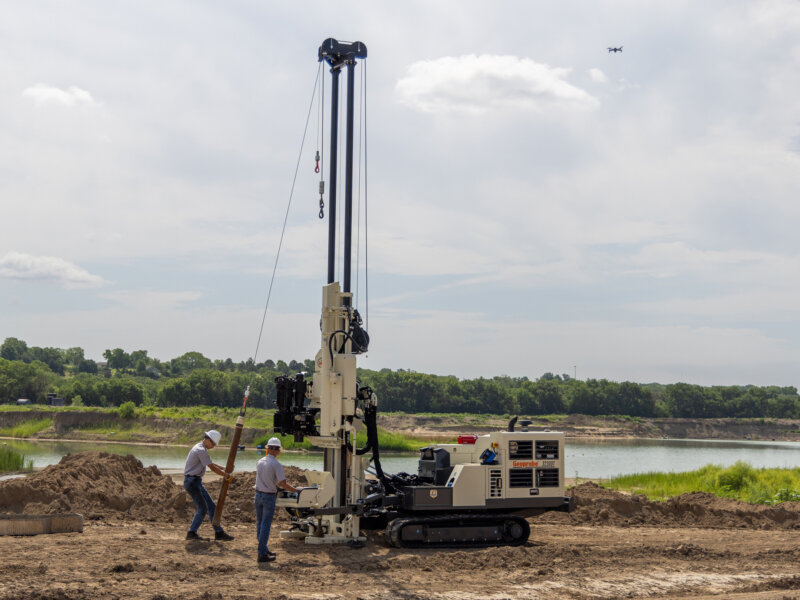

Drillers seeking to maximize footage by performing rotary drilling and direct push sampling with a single drill rig appreciate the versatility of the 3230DT. Known for providing precision head feed control and straight and rigid top-head driven design, the latest 3230DT drill rig adds horsepower and fuel-saving hydraulic features.
- Percussion System
- GH70 Hammer
- Engine
- Kubota V3800 Tier 4
- 114 hp
- Axial Piston – HP limited pump – LS
- Max flow 72 gpm
- Rotary Drive
- Four Speed Rotary Head
- Rotation Torque (Range 1) 6,000 ft-lb
- Rotation Speed (Range 1) 75 rpm
- Rotation Torque (Range 4) 600 ft-lb
- Rotation Speed (Range 4) 800 rpm
- 1 5/8 in Female Hex U-joint Assembly
- Automatic Drop Hammer, 140 lb.
- Tethered and Wireless Remote Systems
- Winch/Mast Base Assembly
- 7” Breakout Kit
- Winch Kit with Telescoping Mast
- Main Winch 8,500 lbf
- Second Winch 1,800 lbf
- Third Winch 1,100 lbf
- Moyno 3L6 pump (helper side)
- Triplex Water Pump
- High Speed Water Swivel
- Drop Rack System with Utility Rack
- Vise Mount Assembly Bench Yoke Vise
- Head Travel 7 ft
- Head Push Force 50,000 lbs
- Head Pull Force 80,000 lbs
- Head Sideshift 26 in
- Dimensions
- Width 83 in
- Length (transport) 217 in
- Height (transport) 100 in
- Weight 20,500 lbs
For more information on this Geoprobe 3230DT drill rig, please contact Rig Source at 630.365.1649.
