This unit is available for purchase or through a Rental Purchase Option (RPO), allowing you to put the equipment to work while building toward ownership.

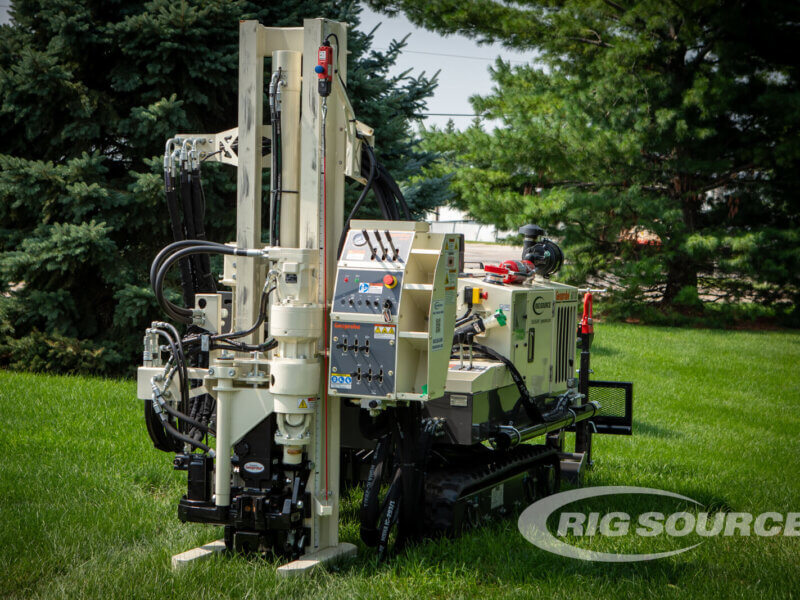

Drillers seeking a small footprint, but big direct push drill rig power, choose the 6011DT to efficiently track into tight spots or through tough terrain. The rig features a proven GH63 percussion hammer and 2 speed auger head while still being sized to slip into small spaces. Easily mobilize the lightweight rig to your direct push jobs with confidence to complete sampling and well installation.
- Percussion System
- GH63 Hammer
- Percussion rate 32 Hz
- Hammer rotation torque 560 ft-lbs
- Hammer rotation speed 200 rpm
- Engine
- Kubota V1505 (LRC)
- 44 hp
- Axial Piston – Load Sense
- Max flow 24 gpm
- Drill Mast Dump 30 in
- Head Travel 5.5 ft
- Head Push Force 32,000 lbs
- Head Pull Force 43,000 lbs
- Head Sideshift 26 in
- Tethered and Wireless Remote Systems
- Dimensions
- Width 48 in
- Length (transport) 106 in
- Height (transport) 77 in
- Weight 4,800 lbs
For more information on this Geoprobe 6011DT please contact Rig Source at 630.365.1649.
