This unit is available for purchase or through a Rental Purchase Option (RPO), allowing you to put the equipment to work while building toward ownership.

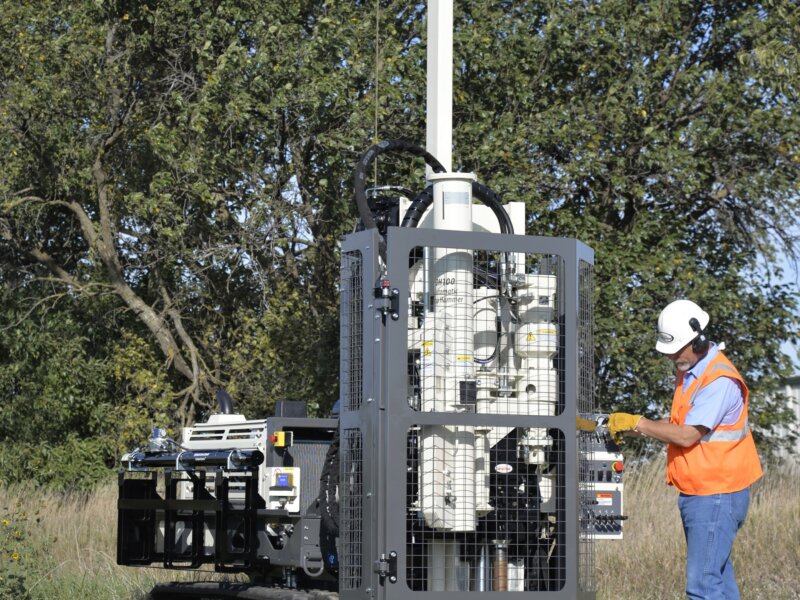

Drillers who need a powerful, easy-to transport machine choose the 6712DT for remote and hard-to-access jobs. The low ground pressure and high ground clearance make the 6712DT ideal for difficult terrain, and the modular design allows it to break into three pieces for transport.
- Percussion System
- GH63 Hammer
- Engine
- Kubota V1505 Tier 4i
- 44 hp
- Axial Piston Pump
- Max flow 24 gpm
- Rotary Drive
- 2-Speed Rotary Head
- Rotation Torque (Range 1) 2,5000 ft-lb
- Rotation Speed (Range 1) 70 rpm
- Rotation Torque (Range 2) 1,250 ft-lb
- Rotation Speed (Range 2) 150 rpm
- 1 5/8 in Hex Adapter
- Automatic Drop Hammer, 140 lb.
- Tethered and Wireless Remote Systems
- Winch/Mast Base Assembly
- Primary Winch 2,500 lbf
- Moyno 2L4 Pump Kit
- Drop Rack System with Utility Rack
- Yoke Vist & Mounting Bracket
- Head Travel 5.5 ft
- Head Push Force 36,000 lbs
- Head Pull Force 48,000 lbs
- Dimensions
- Width 52 in
- Length (transport) 116 in
- Height (transport) 83 in
- Weight 6,030-6,250 lbs
For more information on this Geoprobe 6712DT drill rig, please contact Rig Source at 630.365.1649.
