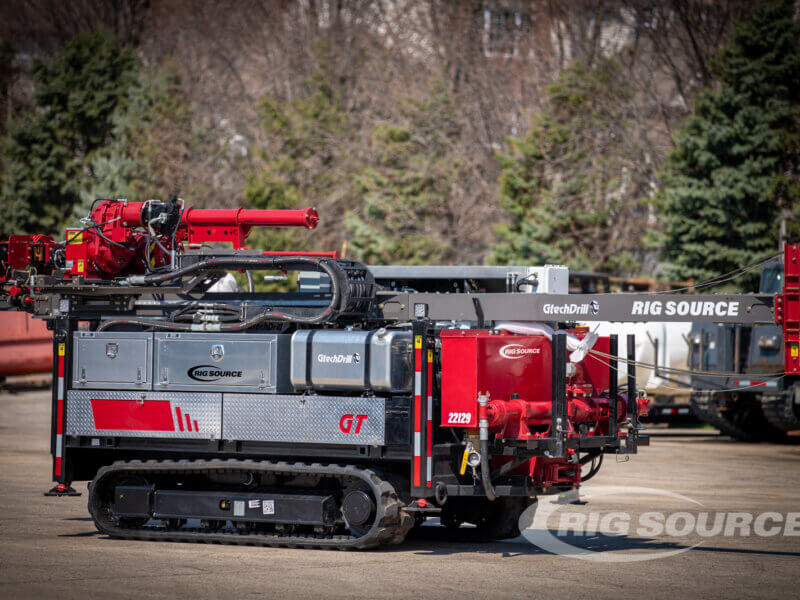

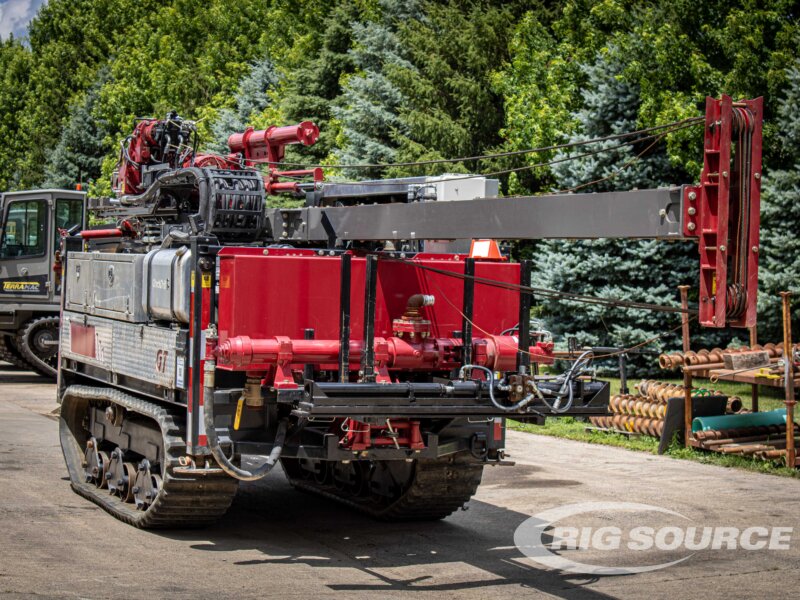

In stock at our Elburn facility, this GTechDrill GT8-MAX from MBI Global boasts best-in-class features and is ready to tackle any of your geotechnical drilling needs.
FEATURES
- Best-in-class torque – Max. speed combo
- Best-in-class for depth in NWL core
- Reliable and simple components for affordable maintenance and continued operations under all conditions.
SPECS
- Max. torque 12,516 ft.-lbs. (4,173.05 kg)
- Max. rotation speed 851 rpm
- Push and pull capacity 44,000 lbs. (19,958 kg)
- Head sliding clearance 16 in. (406 mm)
- Front-rear slide mast 10 in. (254 mm)
- NWL/NW drilling capacity 1,250 ft. (381 m)
- Rig weight on carrier: approx. 26,000 lbs.
- Typical power unit Cat C3.6 Tier 4 Stage 5
