Morooka Product Details
Morooka Rubber Track Carriers

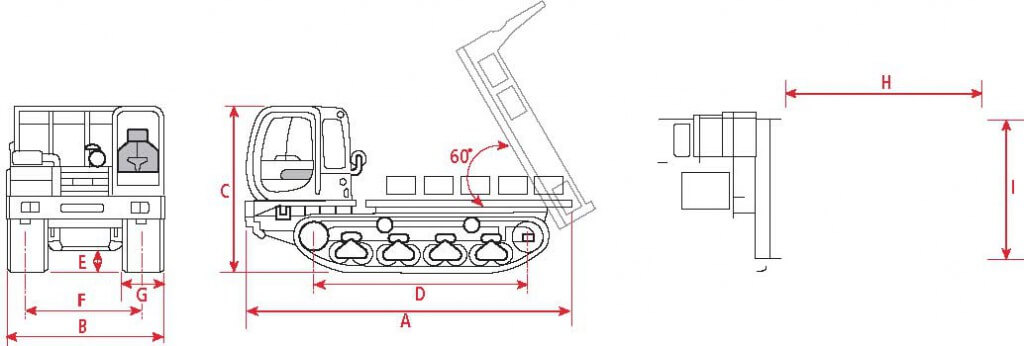

| MODEL | MST300VD/R | MST300VDL | MST600VD/L | MST800VD/L | MST1500VD/L | MST2200VD | MST3000VD | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LENGTH | A | 10’4” | 3150 MM | 11’8 | 3556 MM | 12’6”/15’ | 3810/4572MM | 14’6”/17’9” | 4420/5410MM | 17’5”/21’6” | 5309/6553MM | 19’7” | 5969 MM | 20’2” | 6147 MM | |
| WIDTH | B | 5’4” | 1626 MM | 5’4” | 1626 MM | 6’5” | 1956 MM | 7’7” | 2311 MM | 8’6” | 2591 MM | 9’6” | 2896 MM | 10’4” | 3150 MM | |
| HEIGHT | C | 5’10” | 1778 MM | 5’10” | 1778 MM | 7’6” | 2286 MM | 7’10” | 2388 MM | 9’6” | 2896 MM | 10’4” | 3150 MM | 10’4” | 3150 MM | |
| WHEEL BASE | D | 6’5” | 1956 MM | 6’5” | 1956 MM | 8’ | 2438 MM | 10’3” | 3124 MM | 12’8” | 3861 MM | 12’8” | 3860 MM | 12’8” | 3860 MM | |
| MIN.GROUNDCLEARANCE | E | 11” | 280 MM | 11” | 280 MM | 14” | 356 MM | 18” | 457 MM | 20” | 508 MM | 17” | 432 MM | 20” | 508 MM | |
| GUAGE | F | 4’1” | 1245 MM | 4’1” | 1245 MM | 4’9” | 1448 MM | 5’7” | 1702 MM | 5’11” | 1803 MM | 6’9” | 2057 MM | 7’4” | 2235 MM | |
| TRACKWIDTH | G | 14” | 350 MM | 14” | 350 MM | 20” | 500 MM | 24” | 600 MM | 28” | 700 MM | 30” | 750 MM | 36” | 900 MM | |
| LENGTH OF DUMP BED | H | 5’6” | 1676 MM | N/A | 7’1”/9’7” | 2159/2921MM | 8’6”/11’11” | 2591/3632MM | 10’2”/14’3” | 3099/4343MM | 11’10” | 3607 MM | 12’ | 3658 MM | ||
| WIDTH OF DUMP BED | I | 4’7” | 1397 MM | N/A | 5’7” | 1702 MM | 6’5” | 1956 MM | 7’3” | 2210 MM | 8’1” | 2464 MM | 8’2” | 2489 MM | ||
| WEIGHT | 4,850 LBS | 2200 KG | 4,850 LBS | 2200 KG | 8,800 LBS | 3992 KG | 13,448 LBS | 6100 KG | 20,282 LBS | 9200 KG | 29,762 LBS | 13500 KG | 38,600 LBS | 17509 KG | ||
| FUEL CAPACITY | 13.7 GAL | 51 L | 13.7 GAL | 51 L | 22 GAL | 83 L | 27.7 GAL | 105 L | 39.6 GAL | 150 L | 63.4 GAL | 240 L | 75 GAL | 284 L | ||
| ENGINE MFG | KUBOTA | KUBOTA | KUBOTA | CATERPILLAR | CATERPILLAR | CATERPILLAR | CATERPILLAR | |||||||||
| HORSE POWER | 46 | 46 | 76 | 115 | 204 | 235 | 320 | |||||||||
| TRANSMISSION | HST | HST | HST | HST | HST | HST | HST | |||||||||
| MAXIMUM LOAD | 5,000 LBS | 2268 KG | 5,000 LBS | 2268 KG | 7,260 LBS | 3293 KG | 9,480 LBS | 4300 KG | 13,890 LBS | 6300 KG | 22,046 LBS | 10000 KG | 33,100 LBS | 15014 KG | ||
| TRAVEL SPEED (LOWHIGH) | 3.75.6 MPH | 69 KM/H | 3.75.6 MPH | 69 KM/H | 4.77.5MPH | 7.612KM/H | 5.17.5MPH | 8.212KM/H | 4.76.8MPH | 7.611KM/H | 57.5 MPH | 812 KM/H | 57.5 MPH | 812 KM/H | ||
| GRNDPRESSURE~EMPTY | 2.4 PSI | 0.17 KG/CM2 | 2.4 PSI | 0.17 KG/CM2 | 3.6 PSI | 0.25 KG/CM2 | 2.3 PSI | 0.16 KG/CM2 | 2.4 PSI | 0.17 KG/CM2 | 3.1 PSI | 0.22 KG/CM2 | 2.6 PSI | 0.18 KG/CM2 | ||
| GRNDPRESSURE~LOADED | 4.6 PSI | 0.32 KG/CM2 | 4.6 PSI | 0.32 KG/CM2 | 7.2 PSI | 0.50 KG/CM2 | 3.8 PSI | 0.27 KG/CM2 | 3.9 PSI | 0.28 KG/CM2 | 5.7 PSI | 0.40 KG/CM2 | 4.8 PSI | 0.33 KG/CM2 | ||
REV 052010
