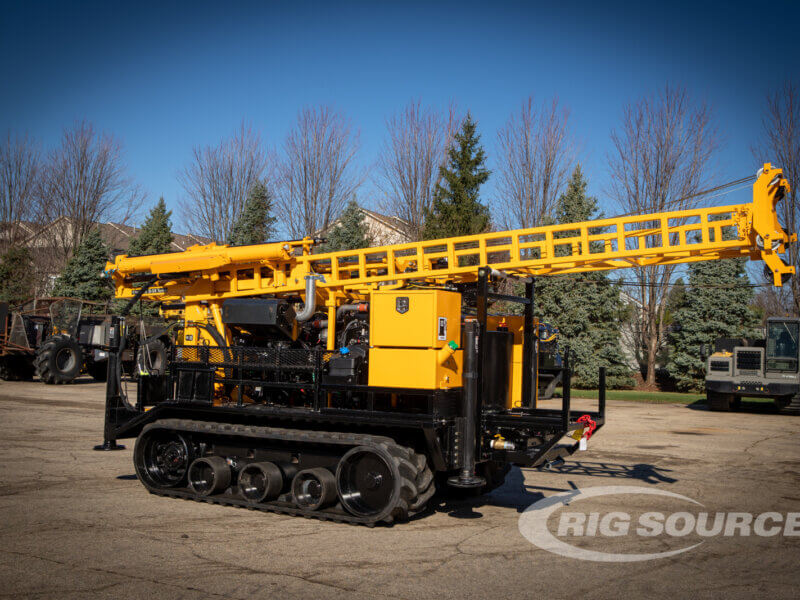

Unit Specifications:
- 115 HP John Deere 275 cu. in. 4-Cylinder
- Heavy-duty Reinforced Rubber Tracks
- Tandem Hydrostatic Drive Pump
- Auxiliary Control Box with Radio Remote Control
- Body Fabrication with Front Auger Rack and Above Deck Tool Box
- Fold Down Work Table
- Mast Includes Quick Disconnect
- Hinged Sheave Assembly
- Four Heavy-Duty 36″ Stroke Leveling Jacks
- In-Out Slide Base, Side to Side Slide
- Heavy-Duty Triple Strand No. 80H Chain-Driven Rotary Box Running in 90 wt. Gear Oil
- 3-1/2″ ID Open Spindle
- Two-Section Hydraulic Pump
- Hydraulic Oil Cooler
- Split Bushings (Quick-Change) on Feed Cylinders
- Detented Feed with Rapid Retract
- Paint Color – Equipment Yellow, Platform and Components – Black
- 21′ Mast (D50) – Standard Tip Down
- Hydraulic Winch (w/Brake) 2000# Capacity
- Hydraulic Winch (w/Brake) 3000# Capacity
- Hydraulic Winch (w/Brake) 7000# Capacity
- Hydraulic Wireline Winch
- Front Carrier Winch
- Water Pump Assembly 3L6
- Automatic SPT Auto Hammer – Side Cylinder Mount
- Breakout Table, Hydraulic Rod Holder
- Breakout Wrench – NW Rod to 6” Casing
- Spindle Adaptor Upper (4-1/4″ Box / NWJ)
- Spindle Adaptor Lower (4-1/4″ Pin/U-Joint / 2″ Hex)
- Water Tank (120 gal. steel tank)
- 10′ Rod Storage on Platform
- Water Swivel – 2J
Rig Source Installation:
- Aftertreatment canister and sensor protector
- Overshot assembly for wireline
- Water manifold system with standpipe
