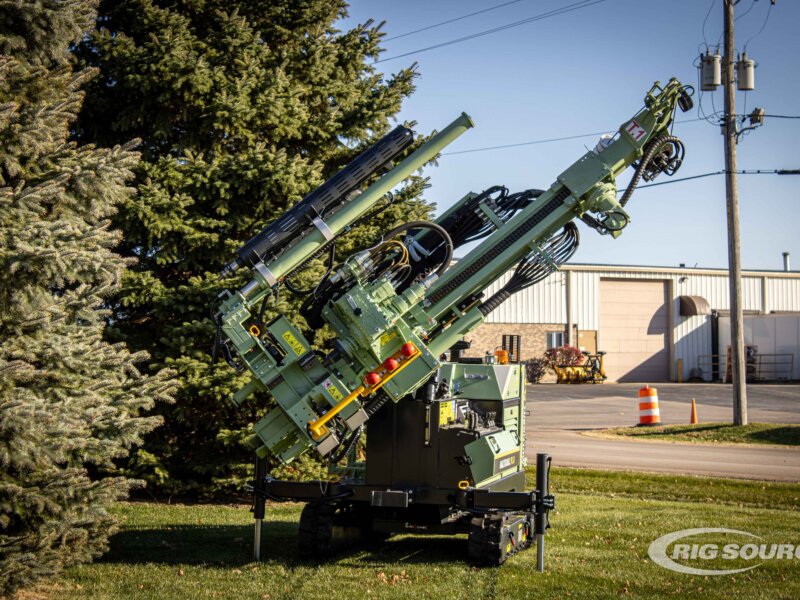

The Fraste Mutlidrill PL A series is specifically designed for the rigors of geotechnical drilling applications, offering specialized features to optimize performance in the field. Within a compact footprint, the PL A is well equipped with up to an 11.5’ stroke and 4,204 ft lb of torque. Modular in design, the PL A can be infinitely customized to meet very specific needs.
Rig Specs:
- Diesel Engine: CAT C2.2, 74 Hp
- Emissions: Stage V, Tier 4F
- Rotary Head Stroke: 5.7 ft including kit mast extension
- Pull-up: 8992 lbf
- Pull-down: 8992 lbf
- Max Rotary Head Torque: 2065 ft lb
- Max Rotary Head Speed: 800 rpm
- Clamp Diameter: 1.6 – 9.8 in
- Weight: 9479 lbs
- Tower Height: 12.5’
- L x W x H (Stowed): 14.5’ x 3.6’ x 8.9’
Standard Features
- Main Winch: 2,248 lbf, 164 ft/min
- Bean/FMC L06 triplex piston pump: 40 gpm 435 psi
- Hydraulic SPT Device: 30”, 142 lbf
- Push Sampling
- Mast Extension
- Hydraulic Air Valve
- Radio Remote Control
Optional Equipment
- Screw Pump: 79 gpm, 145 psi
- Foam Pump: 9 gpm, 550 psi
- Line Lubricator: 2.25 gpm
*Specifications may change without notice.
